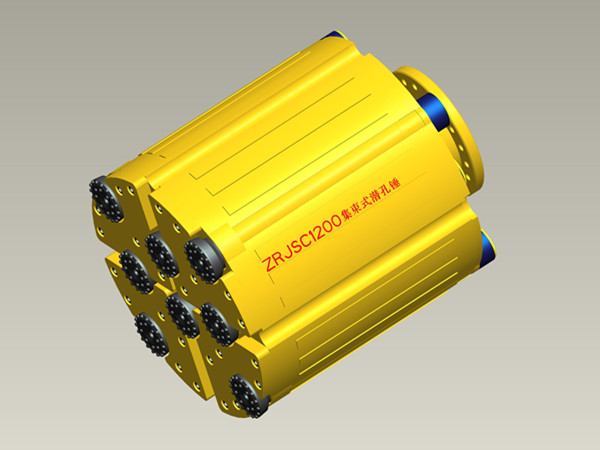

    ZRJSC1200 cluster type down-the-hole hammer
    ZRJSC1200 cluster type down-the-hole hammer



    ZRJSC1200 cluster type down-the-hole hammer technical parameters





    Specifications and models



    ZRJSC1200

    Working size (mm)

    1200



    Height of hammer body (mm)



    1400

    Total height (mm)

    2600



    Hammer weight (kg)



    2450

    Total weight (kg)

    3500



    Number of hammers



    8





    Power consumption parameters





    Wind pressure



    1.0Mpa

    1.8Mpa

    2.4Mpa



    Air consumption



    72m3/min

    144 m3/min

    208 m3/min



    Note: The actual parameters are slightly different due to product improvements, the above parameters are for reference only!
